SPECIFICATIONS

Brand Name: U'King

Certification: CE,RoHS

High-concerned chemical: None

Installation Method: self-contained

Is Batteries Included: No

Is Bulbs Included: Yes

Is Smart Device: no

IsStageLightingEffect'sEquipmentorAccessories: Yes

Item Type: Stage Lighting Effect

Luminous Flux: 2000-82000

Nominal Voltage: 220V

Occasion: Professional Stage & DJ

Origin: Mainland China

Power (W): 150W

Power Source: AC

Style: DMX Stage Light

Voltage: AC100V-240V

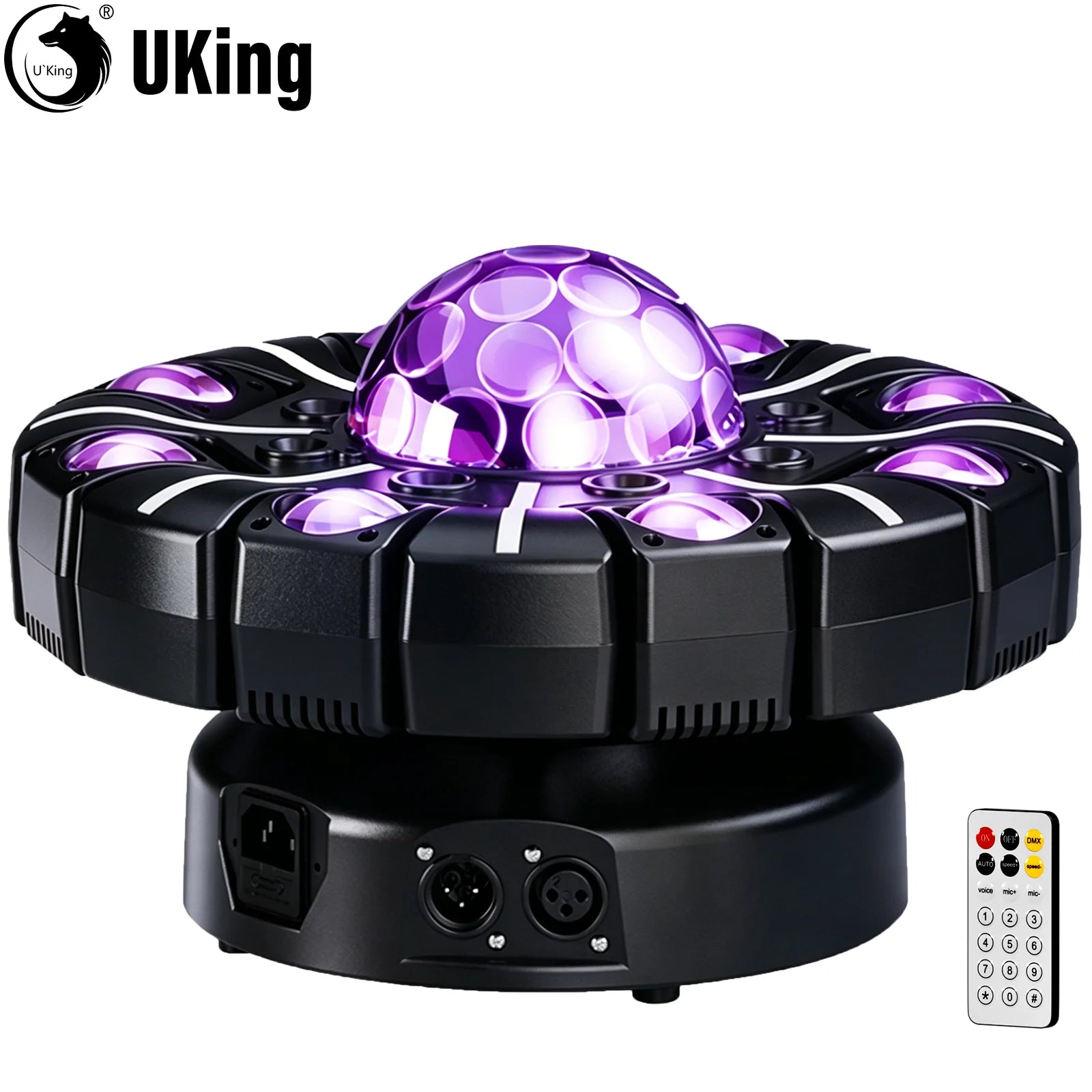

U'King 150W RGBW 8-Armed Moving Head Light Auto Speed Magic Ball Stage Light DMX512 DJ Light For Wedding Party KTV Home Theater

Specification:
1. Input Voltage: AC100V-240V 50/60Hz

2. Rated Power: 150W

3. Actual Total Power: 95W

4. Control Protocol: 433MHz

5. Effective Control Distance: 6-8m

6. Light Source: 8 x 10W (RGBW) LEDs + 4 x 10W (1Y/1G/1B/1P) LEDs + 3 x 10W Warm Light Strobes + 3 x 10W White Light Strobes + 40 LEDs 0.2W (RGB) LED + 1 x 100MW Red Laser + 1 x 50MW Green Laser

7. Optimal Projection Distance: 4-6 meters

8. Average LED Lifespan: 10,000 hours

9. Dimming Curve: 0-100% Linear Dimming

10. Flicker: 0-20Hz

11. Lighting Effects

①8-Arm RGBW Beam Effect

②Magic Ball 4-Color 4-Pattern Projection Effect

③Pure White + Warm White Light Flicker

④Red and Green Starry Sky Effect

⑤Colorful Light Strip Flowing Water Effect

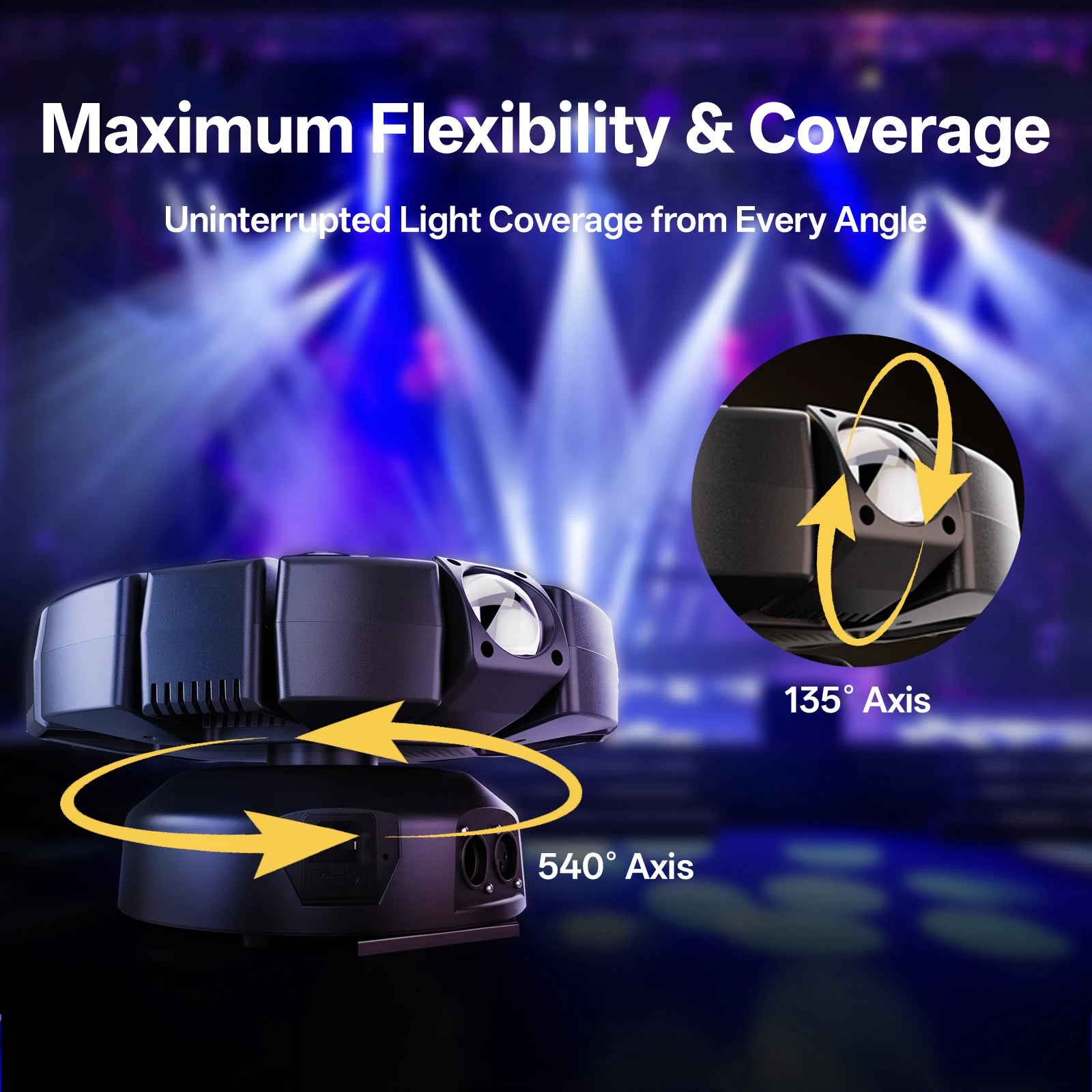

12. X-Axis: 540°

13. Y-Axis: 135°

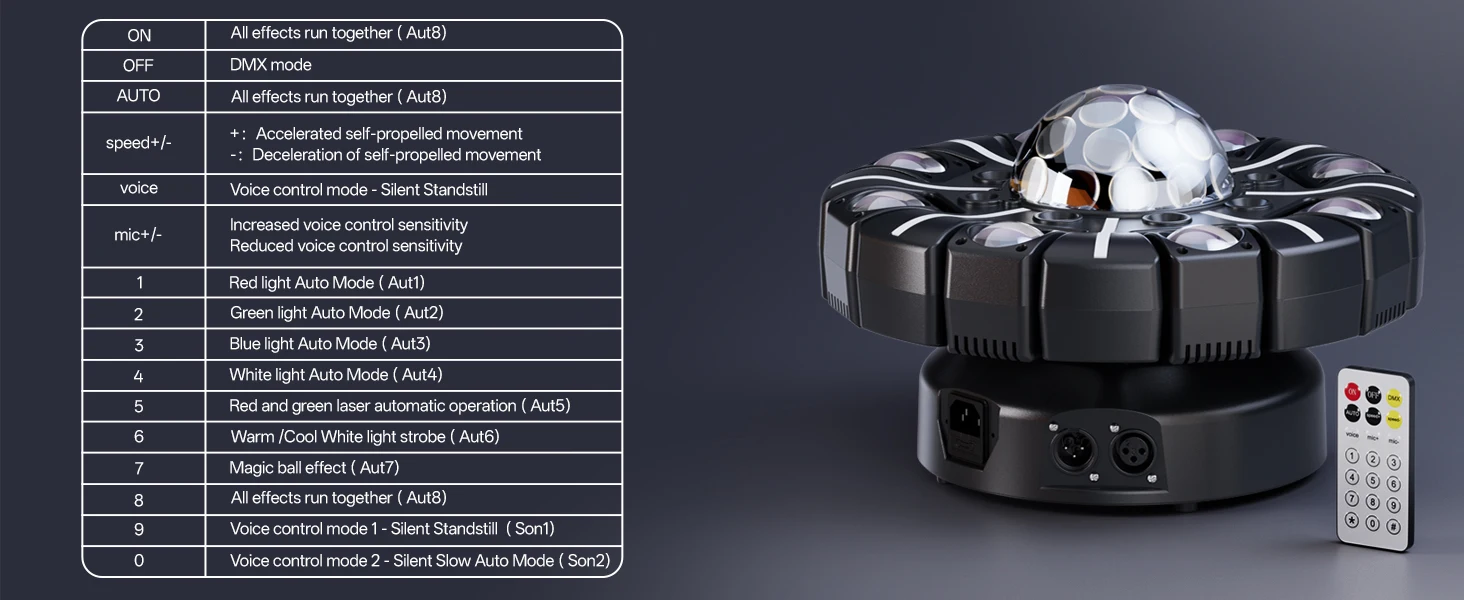

14. Operating Modes: Auto-running, Voice-controlled, Master-Slave, DMX, Remote Control

15. Control Channels: 25CH

16. Protocol: Standard DMX512 Protocol

17. Data Connection: Three-pin XLR Input/Output

18. Display: 4-digit Digital Display

19. Protection Rating: IP20

20. Operating Environment: -20℃~40℃

21. Content: Aluminum + Iron + Plastic Housing

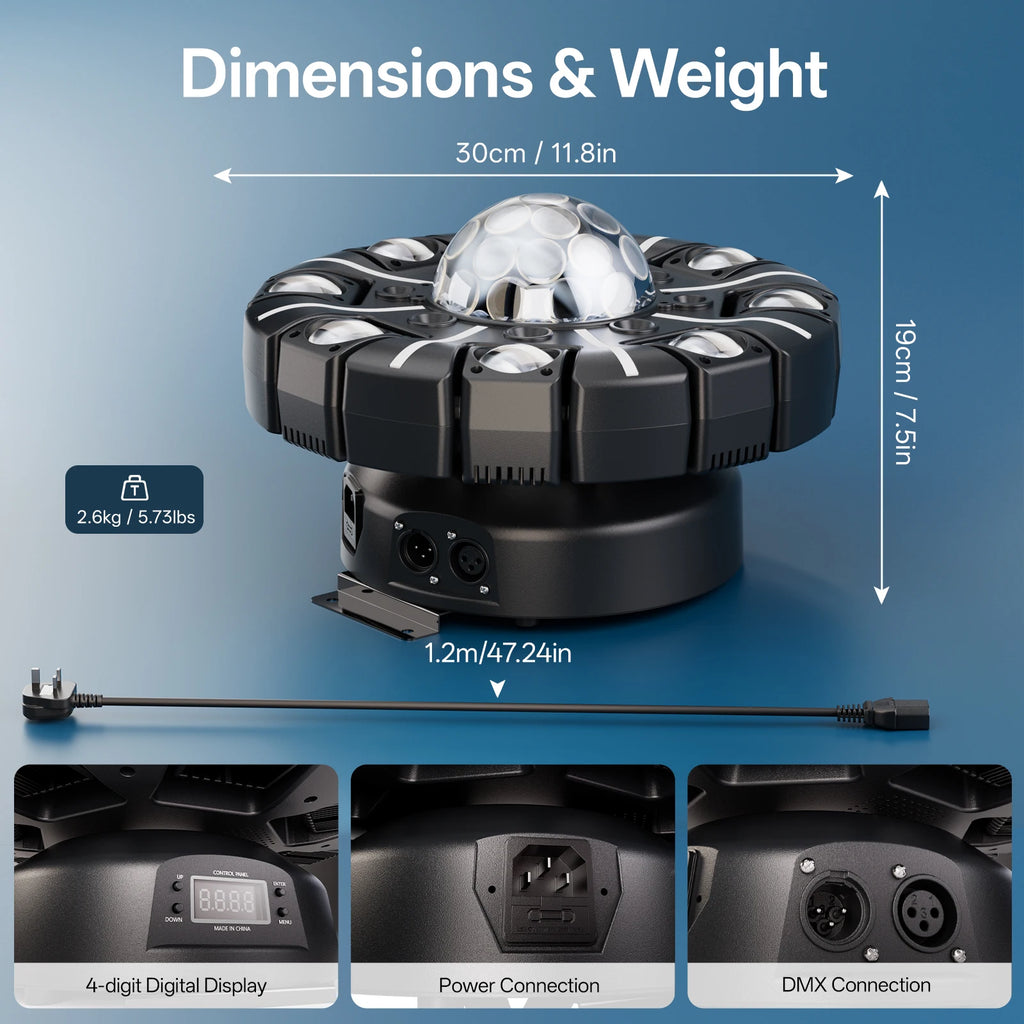

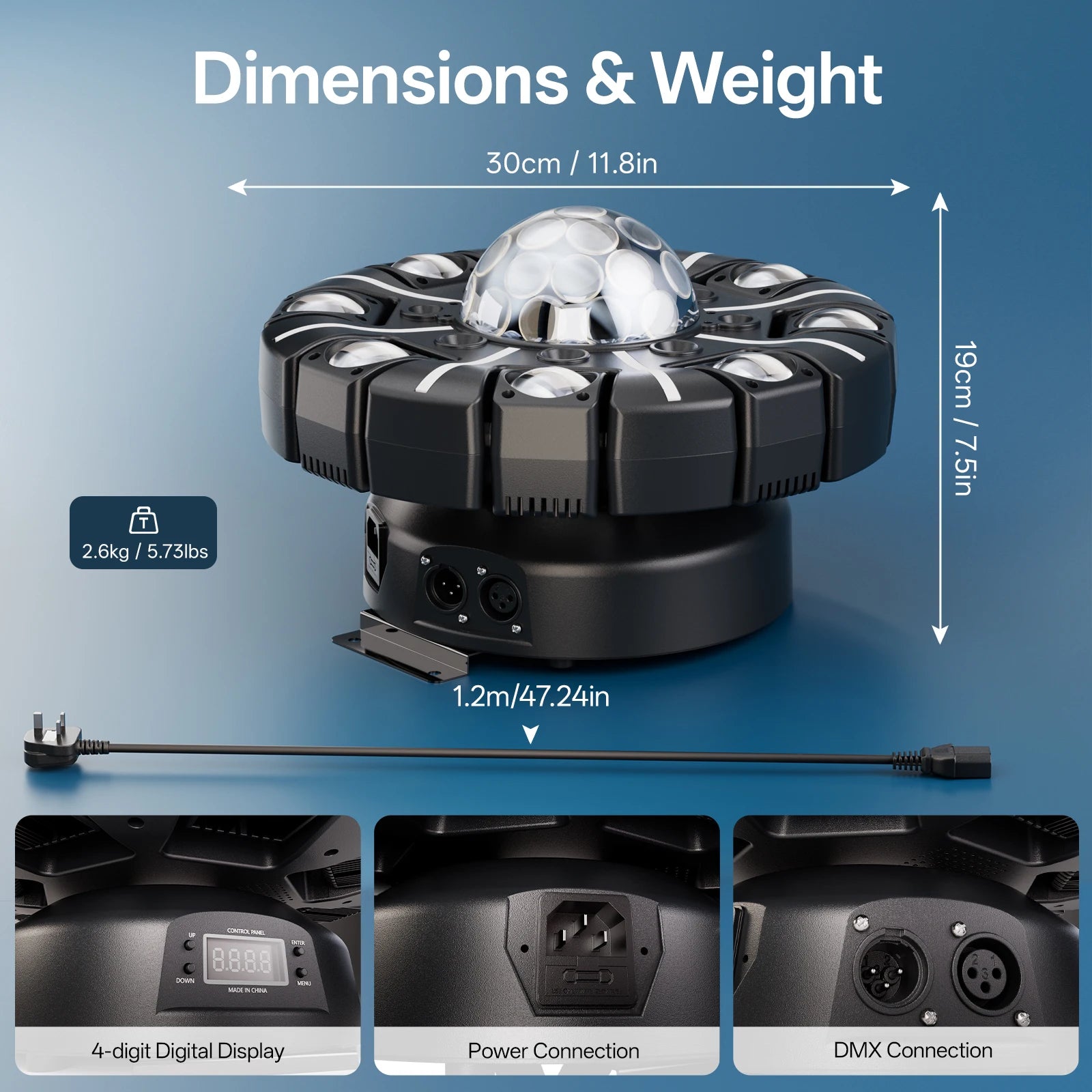

22. Product Size：30x30x19cm/11.8x11.8x7.5in

23. Net Weight：2.6kg/5.73lbs

Features：

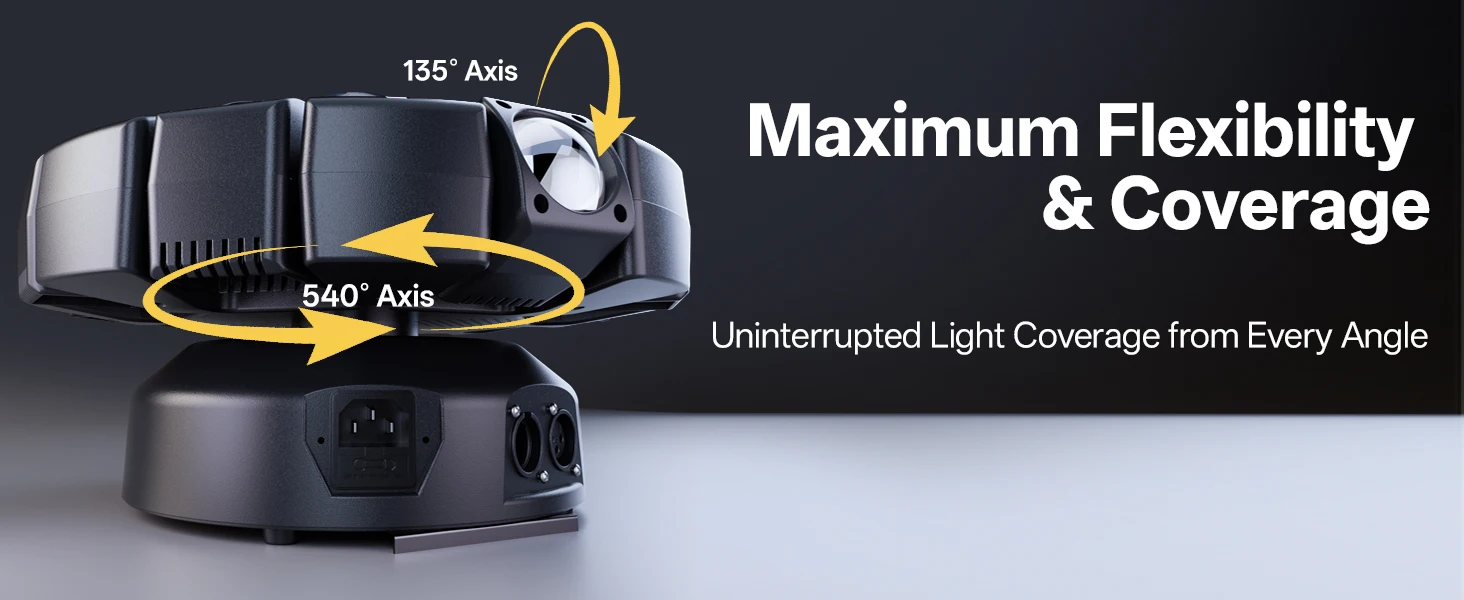

1. Ultra-Wide Coverage: Featuring 540° horizontal rotation and 135° vertical tilt for seamless, shadow-free lighting across the entire space.

2.All-in-One Multi-Effects: Integrates RGBW 8-arm beams, pattern gobos, dual-color strobe, and starlight laser—multiple effects in a single fixture.

3.Versatile Control Options: Supports DMX512, auto, sound-activated, master/slave, and remote control modes for flexible and convenient operation.

4.Adjustable to Any Vibe: Customizable auto speed and sound sensitivity settings to perfectly match different rhythms and atmospheres.

5.Ideal for Multiple Scenarios: Perfect for DJ booths, party gatherings, home theaters, and small venues—effortlessly elevating the ambiance.

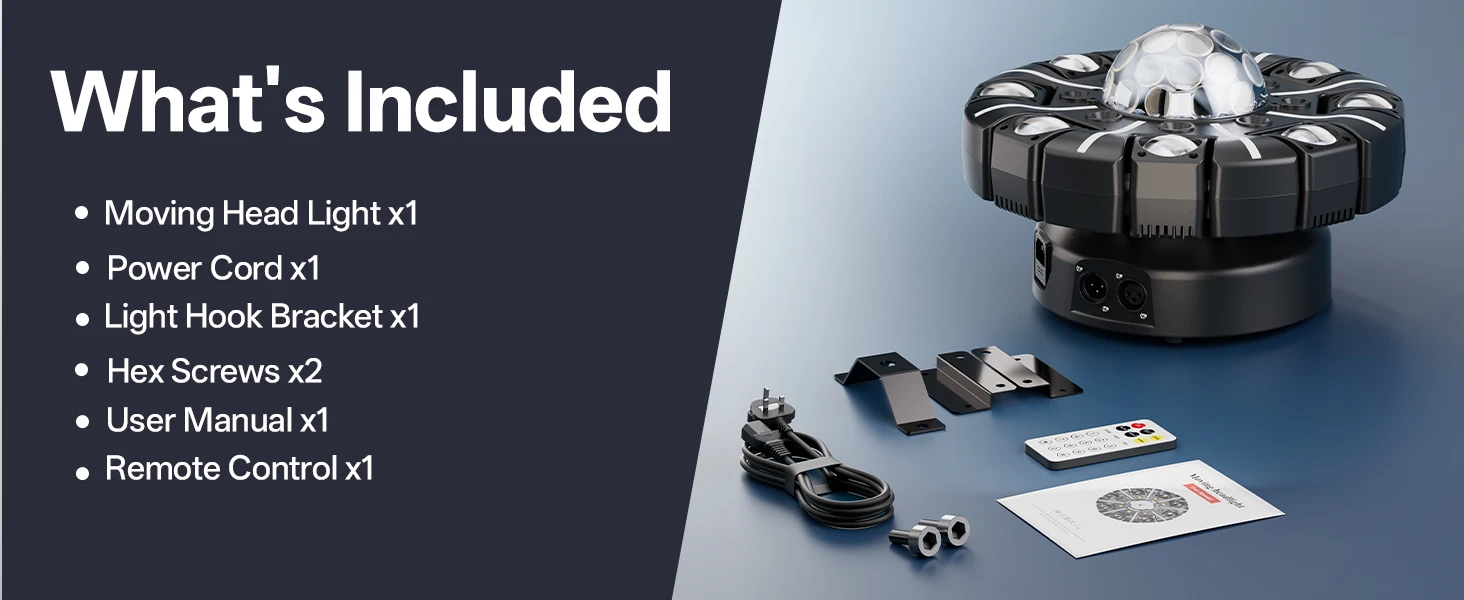

Packing Lists：
Moving Head Light x1

Power Cord x1

Light Hook Bracket x1

Hex Screws x2

User Manual x1

Remote Control x1
